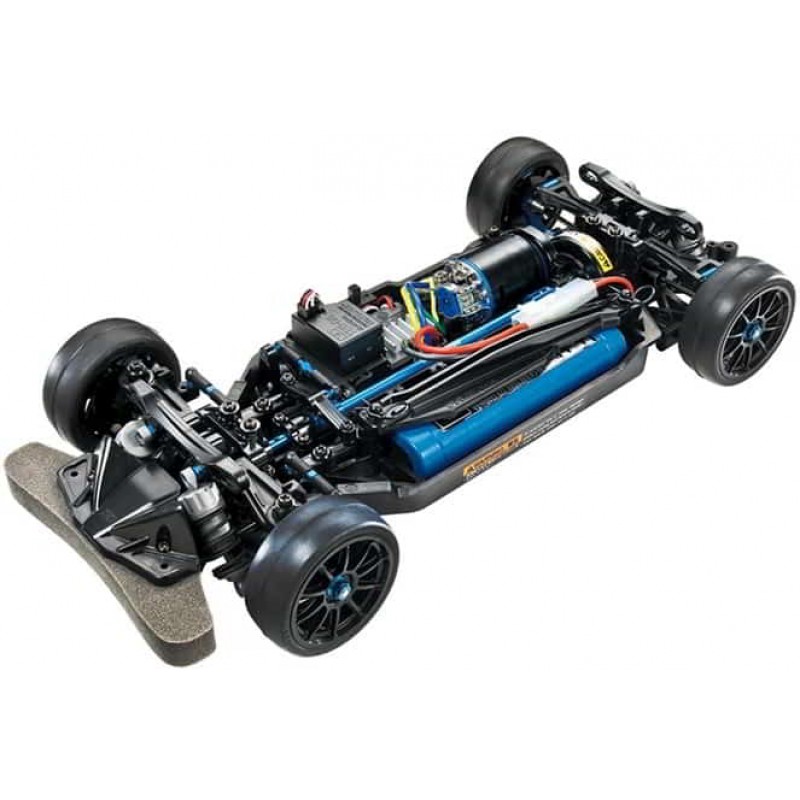

Tamiya TT‑02R 1/10 4WD RC Chassis Kit
- $67.59
- Brands Tamiya
- Product Code: RC14214
- Availability: In Stock
This is the Tamiya TT-02R Chassis 1/10 Scale Electric Powered Shaft-Driven 4WD Kit. This refined, race-spec version of the TT-02 chassis features a wide range of option parts and newly-designed components to make it ready to race! The included racing spec parts include upgraded uprights, motor mount, shafts, joint cups and more, while the suspension is fitted with metal parts and CVA oil ..
Features and Specs of Tamiya TT‑02R 1/10 4WD RC Chassis Kit
This is the Tamiya TT-02R Chassis 1/10 Scale Electric Powered Shaft-Driven 4WD Kit. This refined, race-spec version of the TT-02 chassis features a wide range of option parts and newly-designed components to make it ready to race! The included racing spec parts include upgraded uprights, motor mount, shafts, joint cups and more, while the suspension is fitted with metal parts and CVA oil dampers. It retains the TT-02's versatility and easy-to-drive characteristics.
Features:
- 1/10 scale R/C model assembly kit
- Newly-designed aluminum uprights now provide 3 degrees of toe-in, giving greater stability when cornering
- New aluminum motor mount offers enhanced heat dissipation and greater rigidity of attachment
- Greater efficiency is achieved in the drivetrain with aluminum center shaft and cup
- CVA oil dampers feature a silver color scheme newly implemented for this model
- Uses black springs
- Comes with stylish 10-spoke wheels
- Body not included
- Requires 2-channel radio, steering servo, ESC, motor, 7.2-volt battery and charger and tires
Includes:
1x TT-02R Chassis 4WD Kit
1x TAM53159 4mm Aluminum Flange Lock Nut (Blue)
2x TAM54247 3x18mm Aluminum Turnbuckle Shaft (Blue)
1x TAM54501 TT-02 Aluminum Propeller Shaft
1x TAM53642 5mmAluminum Ball Connector (Blue)
1x TAM54500 TT-02 High-Speed Gear Set (68T)
1x TAM54502 TT-02 Aluminum Propeller Joint
Requires:
2-Channel Radio and Receiver
Servo
Body
Paint
Battery Pack
Charger
Tools
ESC & Motor
Specs:
Adjustable Gear Ratio: Yes
Bearings: Includes full ball bearings
Chassis Material: ABS Plastic
Chassis Type: TT-02R
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Requires: Requires 2-channel radio, steering servo, ESC, motor, 7.2-volt
battery with charger and tires.
Scale: 1/10
Shock Damper: CVA Oil Filled
Suspension: Fully Independent Double Wishbone
Terrain Use: On-Road
