Motor Overview:

Experience next-level power and efficiency with the Scorpion HK5-4015-805kV brushless motor, engineered for 500-size helicopters and high-demand UAVs. With extreme torque, advanced cooling, and premium components, it delivers unbeatable performance, reliability, and precision for pilots who demand the very best.


Extreme Power and Torque

The Scorpion HK5-4015 brushless motor delivers unmatched torque per amp and up to 2100W of power, making it ideal for 500-size helicopters and high-demand UAV applications. It's manually wound ultra high-temperature windings rated above 250°C, combined with imported high-quality bearings and a hardened steel shaft, ensure smooth operation, maximum power output, and long-lasting reliability under extreme conditions. Specially designed ARC magnets further enhance efficiency and torque, giving pilots precise control and responsive performance.


Advanced Cooling Design

The HK5-4015 features an innovative dual-fan system with an updated internal fan and a proven external centrifugal fan, nearly doubling airflow through the motor. This extreme cooling reduces operating temperatures by 20%, improves durability, and maintains peak performance during extended flight sessions. Optimized for 6S LiPo batteries with 450-500mm blades, it offers flexibility with blade size selection while minimizing maintenance, making it a top choice for serious RC enthusiasts and UAV operators.


Features:

  • Delivers up to 2100W of power
  • Optimized for 500-size helicopters and UAVs
  • Manually wound high-temperature windings rated over 250°C
  • Imported high-quality bearings for smooth operation
  • Hardened steel shaft for longer service life
  • Specially designed ARC magnets for improved torque per amp
  • Dual-fan cooling system reduces temperature by 20%
  • Compatible with 6S LiPo batteries and 450-500mm blades


Includes:

  • (1) Scorpion HK5 4015 Brushless Motor
  • (3) 4mm Female Bullet Connectors
  • (3) Heat Shrink
  • (1) Hardware pack


Specifications:

Application 500-size Helicopters & UAV
Type Sensorless Brushless
kV Rating 805kV
Operating Voltage 6S (22.2V) LiPo
Continuous Current 60 Amps
Peak Current 95 Amps (2 Seconds)
Dimensions 1.95x1.79in (49.5x45.4mm)
Shaft Dimensions 0.235x1.26in (5.98x32mm)
Weight 9.09oz (257.8g)

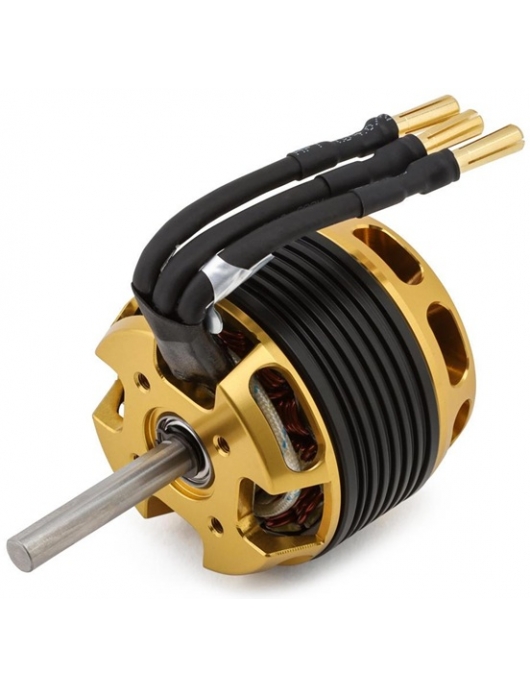

Scorpion HK5 4015 805KV Brushless Motor 5.98x32mm Shaft

  • Product Code: SCP-HK5-4015-805

Motor Overview:

Experience next-level power and efficiency with the Scorpion HK5-4015-805kV brushless motor, engineered for 500-size helicopters and high-demand UAVs. With extreme torque, advanced cooling, and premium components, it delivers unbeatable performance, reliability, and precision for pilots who demand the very best.


Extreme Power and Torque

The Scorpion HK5-4015 brushless motor delivers unmatched torque per amp and up to 2100W of power, making it ideal for 500-size helicopters and high-demand UAV applications. It's manually wound ultra high-temperature windings rated above 250°C, combined with imported high-quality bearings and a hardened steel shaft, ensure smooth operation, maximum power output, and long-lasting reliability under extreme conditions. Specially designed ARC magnets further enhance efficiency and torque, giving pilots precise control and responsive performance.


Advanced Cooling Design

The HK5-4015 features an innovative dual-fan system with an updated internal fan and a proven external centrifugal fan, nearly doubling airflow through the motor. This extreme cooling reduces operating temperatures by 20%, improves durability, and maintains peak performance during extended flight sessions. Optimized for 6S LiPo batteries with 450-500mm blades, it offers flexibility with blade size selection while minimizing maintenance, making it a top choice for serious RC enthusiasts and UAV operators.


Features:

  • Delivers up to 2100W of power
  • Optimized for 500-size helicopters and UAVs
  • Manually wound high-temperature windings rated over 250°C
  • Imported high-quality bearings for smooth operation
  • Hardened steel shaft for longer service life
  • Specially designed ARC magnets for improved torque per amp
  • Dual-fan cooling system reduces temperature by 20%
  • Compatible with 6S LiPo batteries and 450-500mm blades


Includes:

  • (1) Scorpion HK5 4015 Brushless Motor
  • (3) 4mm Female Bullet Connectors
  • (3) Heat Shrink
  • (1) Hardware pack


Specifications:

Application 500-size Helicopters & UAV
Type Sensorless Brushless
kV Rating 805kV
Operating Voltage 6S (22.2V) LiPo
Continuous Current 60 Amps
Peak Current 95 Amps (2 Seconds)
Dimensions 1.95x1.79in (49.5x45.4mm)
Shaft Dimensions 0.235x1.26in (5.98x32mm)
Weight 9.09oz (257.8g)
Scorpion

$107.00
